Nuclear Weapons design

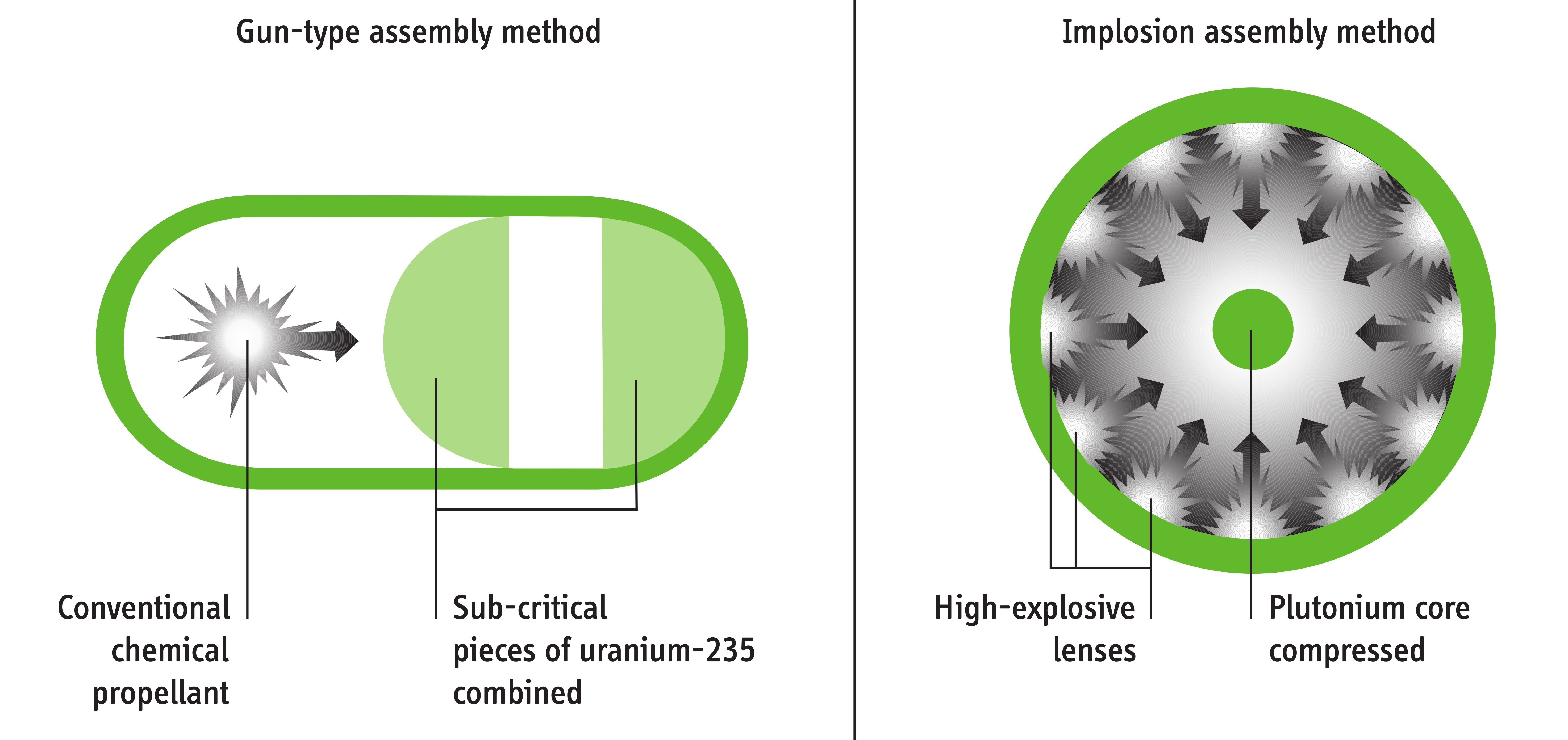

Alternative methods for creating a supercritical mass in a nuclear weapon.
In the technically less sophisticated "gun-type" method used in the Hiroshima bomb (left), a subcritical projectile of HEU is propelled towards a subcritical target of HEU. This assembly process is relatively slow. For plutonium, the faster "implosion" method used in the Nagasaki bomb is required. This involves compression of a mass of fissile material. Much less material is needed for the implosion method because the fissile material is compressed beyond its normal metallic density. For an increase in density by a factor of two, the critical mass is reduced to one quarter of its normal-density value. From IPFM, Global Fissile Material Report 2011
